Functions:

Tri-band, dual display, dual standby & Dual Track
Dual frequency standby setting(TDR)
Scrambling function
Channel scan function
Busy channel lock-out (BCL)
Time-out timer (TOT)
Transmit over alarm setting(TOA)
CTCSS/DCS encoding and decoding
PC software programmable
Broadband (Wide)/Narrow band (Narrow) selectable
Frequency Step Selectable 5/6.25/10/12.5/25KHz
High/low power selectable
Function key guide voice(BEEP)
Tri-color background light selectable
Level Threshold “Squelch” adjustable from 0 to 9
Operation for manual channel memory and delete
Memory FM radio channel
Automatic lock-out
Display mode setting
Optional signaling setting
Transmit transit signal
PTT ID Setting
DTMF signal setting
DTMF signal
Speaker mute setting(SPMUTE)
Monitor function
Remote stun
Remote kill
Turn on function
Alarm function
DTMF transmit by Call Key setting
2 tone and 2 tone signal transmit by Call Key setting

Specification:

General
Frequency range   VHF: 136-174 mhz, 240-260 MHz
UHF: 400-480 MHz
FM : 76-108.900 MHz
Output power   25W/20W(VHF/UHF)
Channel capacity   200
Channel Spacing   25/20/12.5KHz
Frequency Spacing   5/6.25/10/12.5/15/25KHz
Operating Voltage   13.8V DC±15%
Squelch way   CTCSS/DCS/5Tone/2Tone/DTMF
Frequency stability   ±2.5ppm
Working Temperature   -20°C~+60°C
Color   Black
Dimension(Exclude antenna)   98(W)x35(H)x118(D)mm
Weight(Include Battery)   408g

Transmitter
Parameter   Broadband   Narrowband
Sensitivity   <=0.25µV   <=0.35µV
Channel choice   >=70dB   >=60dB
Intermodulation   >=65dB   >=60dB
Suprious Rejection   >=70dB   >=70dB
Audio response   +1~-3dB(0.3~3KHz)   +1~-3dB(0.3~2.55KHz)
Signal to noise ratio   >=45dB   >=40dB
Audio Distortion   <=5%
Audio output power   >=2W@10%

Receiver
Parameter   Broadband   Narrowband
Modulation Mode   16KØF3E   11KØF3E
Channel Power   >=70dB   >=60dB
Signal to noise ratio   >=40dB   >=36dB
Parasitic harmonic   >=60dB   >=60dB
Audio response   +1~-3dB(0.3~3KHz)   +1~-3dB(0.3~2.55KHz)
Audio distortion   <=5%

Package Content:

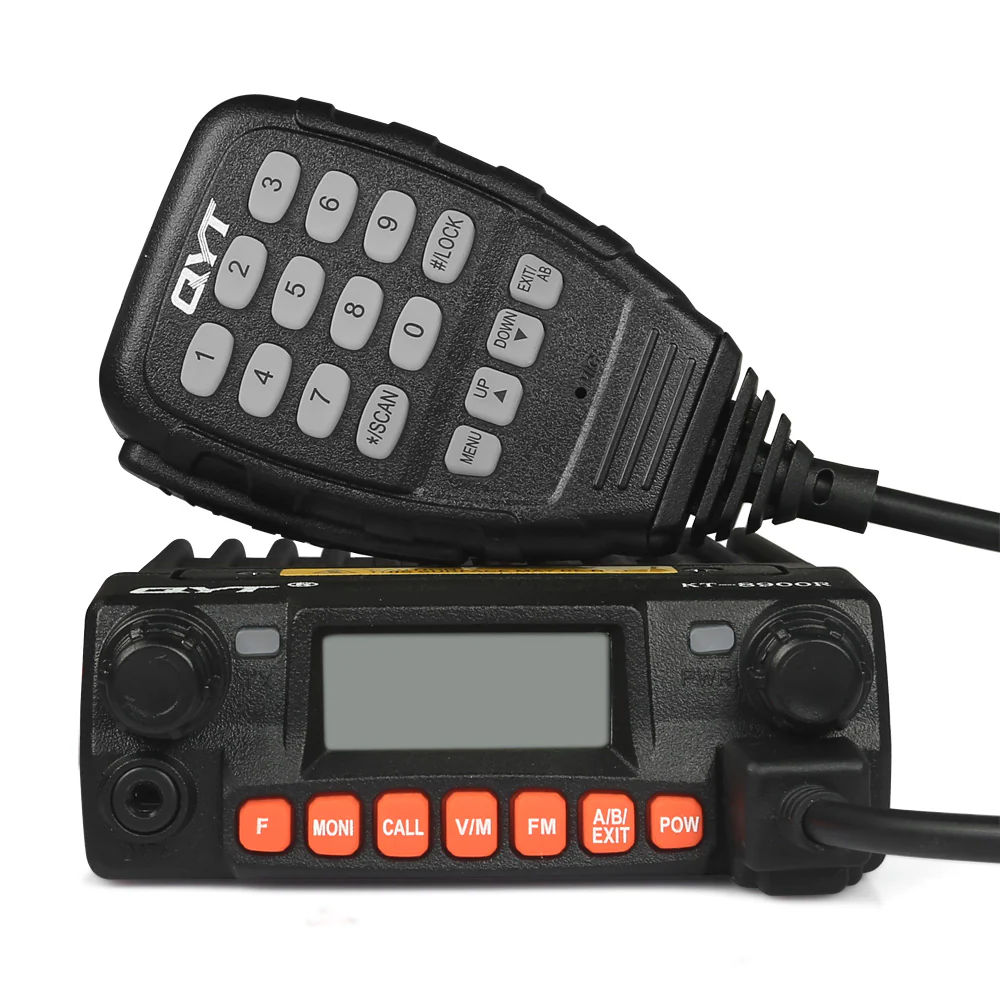

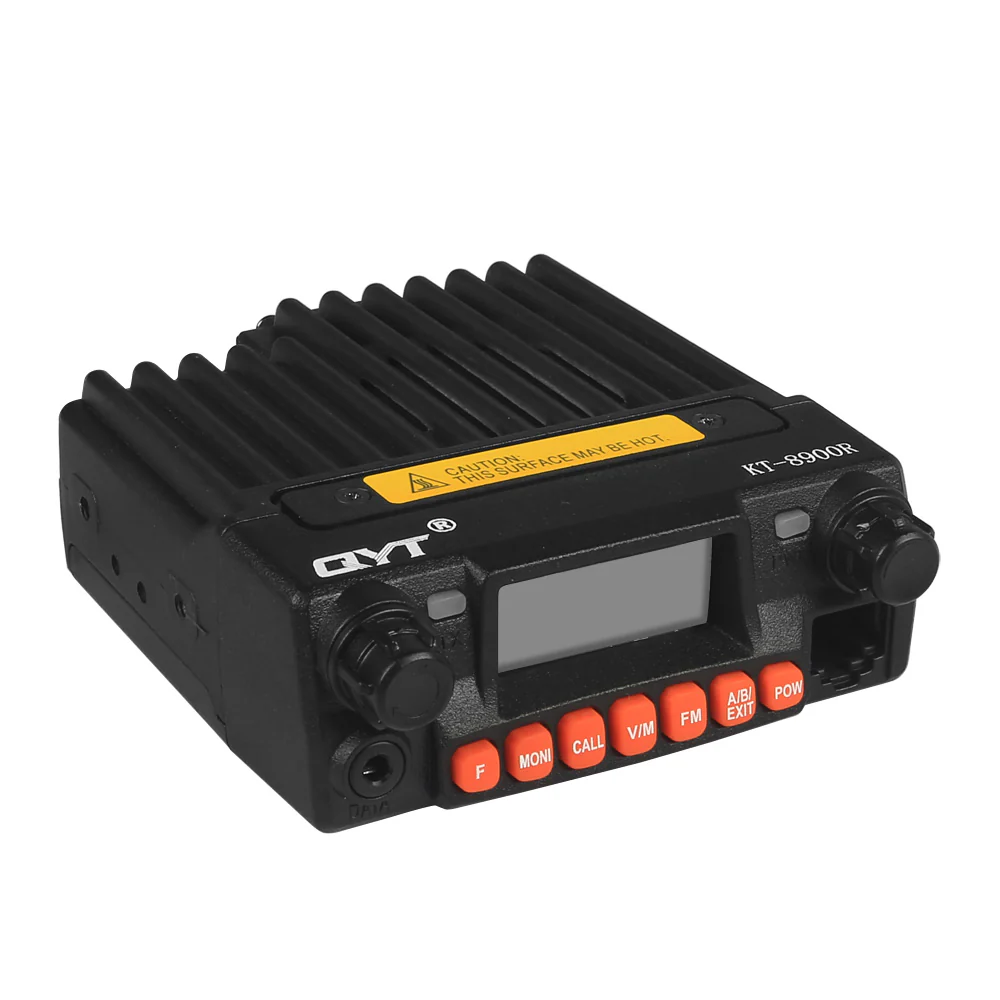

1 x New QYT KT-8900R Machine
1 x Handheld Microphone
1 x Mounting bracket
1 x Power cable
1 x User's manual
1 x Programming Cable
